異型

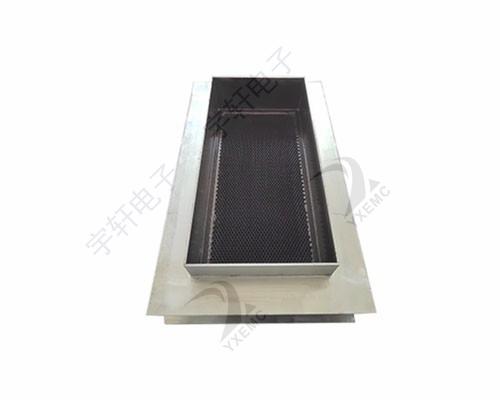

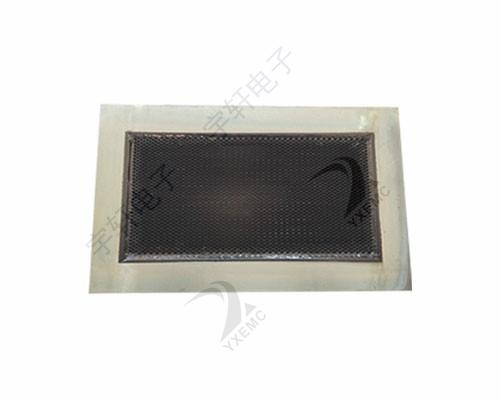

異型蜂窩型通風波導屏蔽通風窗

異型

● 錫焊式波導窗采用進口鍍錫板沖壓成型
● 表面處理后優越的抗腐蝕能力
產品詳情

特 點 Features

● 錫焊式波導窗采用進口鍍錫板沖壓成型

Solder waveguide window adopts imported tinplate stamping forming

● 表面處理后優越的抗腐蝕能力

Excellent corrosion resistance after surface treatment


應 用 Application

● 需要同時滿足設備通風散熱和電磁屏蔽、電磁脈沖、防信息泄漏要求的場合

It is necessary to meet the requirements of ventilation and heat dissipation, electromagnetic shielding, electromagnetic pulse and anti information leakage at the same time

● 有通風散熱要求的各種軍用電子設備、移動指揮控制設備、屏蔽室等高等級場合

All kinds of military electronic equipment, mobile command and control equipment, shielding room and other high-level occasions with ventilation and heat dissipation requirements

● 民標測試實驗室、軍標測試實驗室 Civil standard test laboratory and military standard test laboratory


可選規格 Optional specifications

● 標準厚度Standard thickness:12.5mm、25mm、45mm、50mm等
● 標準孔徑Standard aperture:2mm、3mm、4mm、5mm、6mm、8mm、10mm等

● 表面鍍層Surface Coating:
導電氧化后,可鍍錫、鍍鎳、鍍鋅、鍍鉻After conductive oxidation, tin, nickel, zinc and chromium can be plated


● 法蘭框材質Material of flange frame:

馬口鐵、不銹鋼、紫銅、黃銅Tinplate, stainless steel, copper, brass


● 法蘭框形狀Flange frame shape:

通風波導窗廠家電磁屏蔽通風波導窗



EMI屏蔽效能Shielding effectiveness:

磁場magnetic field

14KHz≥75dB 150KHz≥100dB

電場electric field

200KHz~50MHz≥110dB

平面波plane wave

50MHz~1GHz≥110dB

微波microwave

1GHz~10GHz≥100dB
10GHz~18GHz≥90dB

訂貨說明:形狀、尺寸、邊框結構、邊框上定位孔的距離和數量、安裝方式,鍍層要求可根據提供的設計圖紙進行生產。
