● 地線、邏輯地專用。

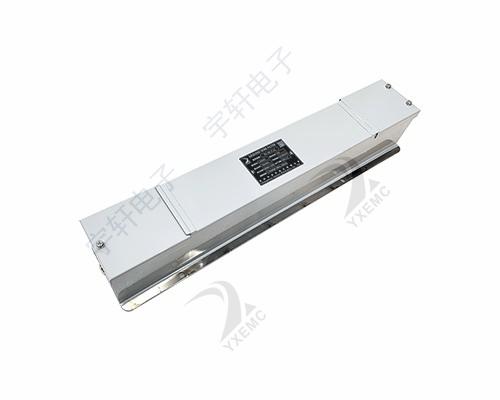

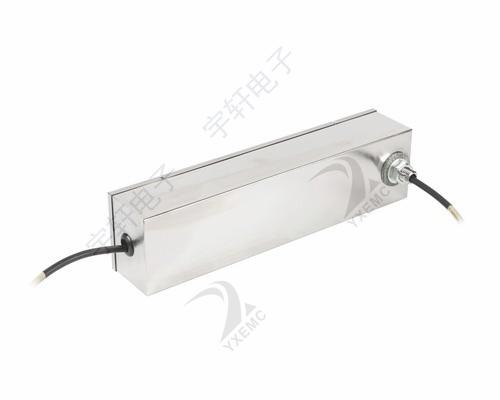

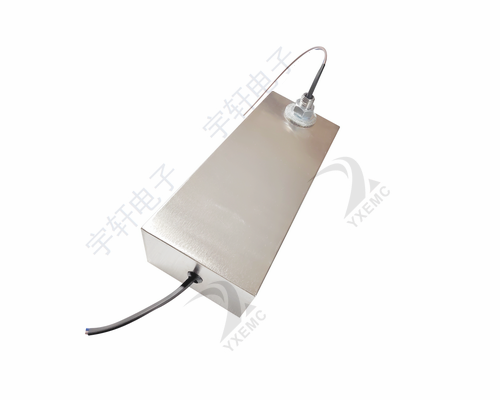

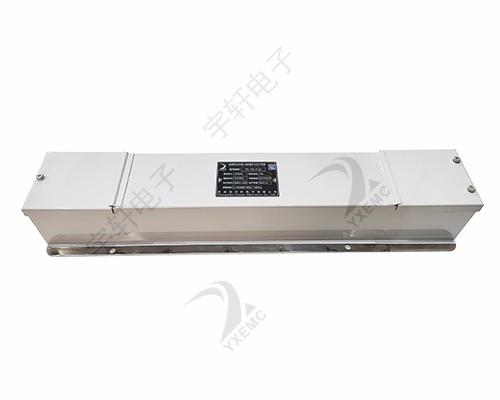

產品詳情

特 點 Features

● 體積小,性價比高。Small size, high cost performance.

● 壓降<1V。The voltage drop is less than 1V.

● 電流10A至1000A。The current is 10a to 1000A.

● 金屬殼體采用鍍鎳鋼板和不銹鋼大蓋板組合式結構,美觀大氣,機械強度高,耐腐蝕性強。

The metal shell adopts the combined structure of nickel plated steel plate and stainless steel large cover plate, which is beautiful and atmospheric, with high mechanical strength and strong corrosion resistance.


應 用 Application

● 電波暗室、屏蔽房、電子方艙和機柜等設施的專用配套,能有效的抑制輻射干擾。The special supporting facilities of anechoic chamber, shielding room, electronic shelter and cabinet can effectively suppress radiation interference.


性能指標 Characteristcs

額定電壓Rated voltage

250VAC

500VDC

工作頻率 Operating Frequency

0~60HZ

耐壓試驗 Test Voltage

1000VDC/2S(線-地Line - ground)

3000VDC/2S

電壓降△V Voltage drop

<1V(額定工作條件Rated working conditions)

氣候類別 Climate category

25/070/21


產品型號表 Filter Table

型號

model

額定電流A

Rated curren

波導螺桿

Waveguide screw

導線

wire

外形尺寸Fig.

Outline Drawing

插入損耗dB

insertion loss

YX-10C-F

10

M16

14AWG

1

100dB
14K~10GHz

備注:可拓展至40GHz

YX-16C-F

16

M16

12AWG

1

YX-32C-F

32

M24

10AWG

2

YX-50C-F

50

M24

8AWG

2

YX-65C-F

65

M24

6AWG

2

YX-80C-F

80

M24

6AWG

3

YX-100C-F

100

M24

4AWG

3

YX-150C-F

150

M24

2AWG

3

YX-200C-F

200

M33

1/0AWG

4

YX-250C-F

250

M33

70mm2

4

YX-300C-F

300

M33

95mm2

4

YX-400C-F

400

M42

25×6

5

YX-500C-F

500

M42

25×6

5

YX-600C-F

600

M48

30×8

6

YX-800C-F

800

M48

30×8

6

YX-1000C-F

1000

M72

50×10

7

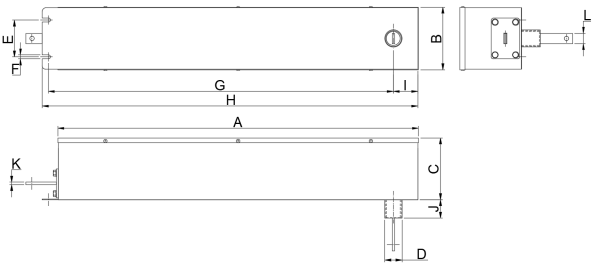

外形尺寸圖 Outline Drawing : mm


Fig.1~Fig.3(10A~150A)

外形尺寸圖

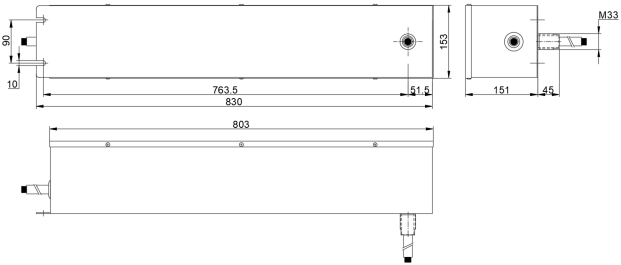

Fig.4 (200A~300A)

地線專用濾波器


Fig.5~Fig.7 (400A~1000A)

地線專用濾波器

外形尺寸Fig.

A

B

C

D

E

F

G

H

I

J

K

L

1

363

103

86

M16

30

45

/

/

/

/

/

/

2

363

133

101

M24

30

45

/

/

/

/

/

/

3

523

133

101

M24

30

45

/

/

/

/

/

/

5

883

153

151

M42

90

10

845

920

60

45

6

25

6

883

153

221

M48

90

10

845

920

60

65

8

30

7

933

153

266

M72

110

10

865

960

80

95

10

50
